How Does a Vacuum Switch Work?
Discover the comfort of cluster pillows, filled with tiny, soft clusters for adjustable support and a cozy sleep experience.
First of all we should understand what a vacuum switch is? It is basically a small device that is used to watch and analyze how strong a vacuum is and maintain a vacuum electric circuit.
- It is used for on or off electric circuits when it reaches a certain level.
- It is used for the safety and automation of vacuum.
- It reads the vacuum and sends an on/off signal to the system.
- It is used in many machines like vacuum pumps, lab equipment and dust collection systems for power tools.
How Does a Vacuum Switch Work?
When the pressure is below the level of the atmosphere(vacuum) a vacuum switch reacts and tries to maintain the pressure. It basically activates when the pressure crosses a present value.
The switch activated in two levels
- It opens that contact(turns a circuit off)
- It closes an electric contact(turns a circuit on)
It can be helpful for switch to indicate:
- When to start or stop when the vacuum is too high or low enough
- If Vacuum will be drop unexpectedly during working it will turn on the alarm
- If the vacuum is in safe and sound only then it will help machines to operate
A vacuum switch can control other parts of a system when it turns a physical vacuum condition into a simple electrical signal.

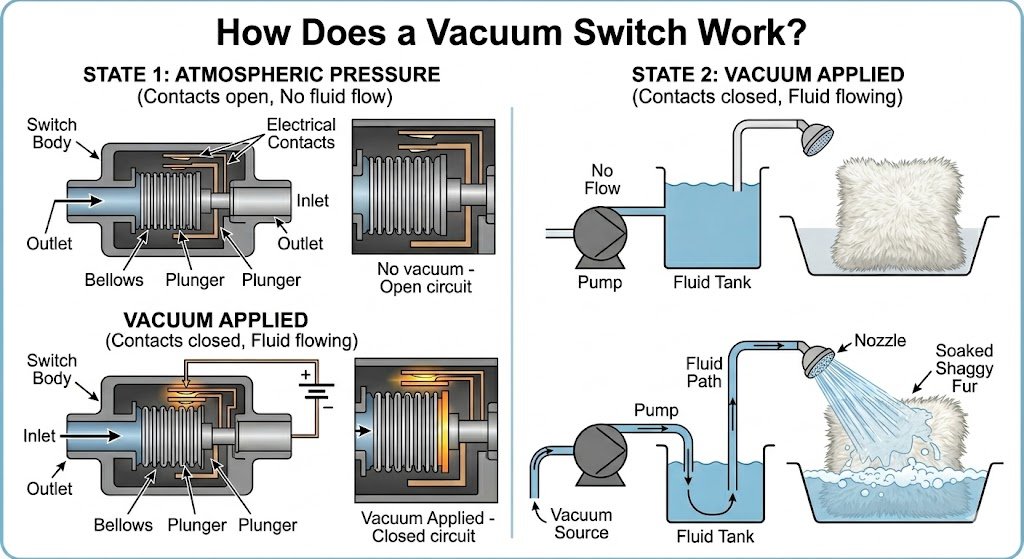

Simple Working Process of a Vacuum Switch
A Sense of Pressure (Diaphragm)
- A small opening of switch connected to the lines of vacuum
- A thin metal diaphragm sits between an air filled chamber and vacuum side inside
Diaphragm moves by vacuum
- The air pressure on the other side pushes the diaphragm inward when the vacuum increase
- The diaphragm moves backward to its normal position when the vacuum decreases
Switch flips because of movement
- A small lever or spring is connected to diaphragm
- The lever trips a tiny micro-switch(on/off button)when the diaphragm moves far enough
The contacts change state at the setpoint
- Turns something off but normally closed(NC)opens
- Turns something on but normally open(NO)closes
The response of system
The system will be response in return as that contacts can directly power a rely or can start a pump or light an alarm
This is basically process of a mechanical vacuum switch works
- First it moves a diaphragm
- Then diaphragm moves a lever
- Then the lever flips an electric switch
Types of vacuum Switch
- Mechanical Vacuum Switch
- Electrical Vacuum Switch
| Type | How it works | Where to use |
|---|---|---|
| Mechanical Vacuum Switch | It works with a small micro-switch and a diaphragm. It has no extra electronics. | Used in industrial pumps, harsh environments, and simple control systems. |
| Electrical Vacuum Switch | It uses an electronic circuit that compares pressure to a digital setpoint and a pressure sensor like a strain gauge. | Used in labs, precise process control, and advanced automation systems. |
Important components to make a vacuum switch practical
Setpoint of vacuum
The first one is the setpoint of vacuum. It is basically defines vacuum level where the switch changes its state
Example
we can take mbar as example, it might be turn on at -50 mbar
Hystersis (Differential)
The second point which is equally important is Hysteresis (differential) in vacuum points. It is gap between on and off points of vacuum
Example
-40 mbar to turn off and -50 mbar to turn on
Hysteresis in vacuum plays an important role in maintaining vacuum level; it also stops the switch from flipping rapidly if the vacuum bounces a little around the setpoint. This can prevent the system from unnecessary cycling of pumps or relays and it also make the system stable
Internal parts of Vacuum Switch
There are some important parts of a vacuum switch
Element of pressure sensening
It is a small sensor that moves with vacuum or it usually a diaphragm
Mechanism of switching
- Mechanical: Diaphragm → lever → micro‑switch.
- Electronic: Sensor → small circuit → solid‑state or relay output.
Housing:
Most of the switches come with protection ratings like IP54 or IP66 to resist dust and water. These switches come in metal or plastic cases
Electrical terminals: NO/NC contacts can be connected with screws or plug-ins, and additional outputs for monitoring are occasionally included.
These parts make the control systems switches both easy and durable
Use of vacuum Switches
Vacuum switches used in many places
Pumps of vacuum and Turbomolecular
Before allowing the turbo pump to start a vacuum switch checked the fore-line pump to find out if it has created enough vacuum
The switch turn the turbo will be off to protect ithe vacuum if it drop due to leak
Lab Chambers and process
The switches help to control pumping and venting cycle in load-lock or vacuum chamber
Two switches play along side with each other
One switch will open the door when it confirms that the vacuum is low enough
Other switch will warn about the vacuum if it is too high before releasing it into atmosphere
Dust collection system in workshops
A compact vacuum switch can connect a table saw or miter saw to a dust collection vacuum.
When the saw is turned on, the switch detects air movement or vacuum and activates the vacuum system automatically. Once the saw is turned off, the vacuum system also stops, which helps save energy and maintains a clean workshop environment.
To make sure the condition of vacuum is safe or ready the vacuum switch plays an integral part in it
The importance of vacuum switches
- Small but crucial components of many safety and control systems are vacuum switches.
- By converting pressure monitoring into automatic on/off logic, they minimize manual labor.
- They prevent equipment and pumps from operating in hazardous vacuum situations.
- Whether in a lab, a workshop, or a factory, they aid with maintaining safe and uniform procedures.
Final Verdict
To put it simply, a vacuum switch silently monitors the vacuum and determines whether to start, stop, or pause the machine. It’s a straightforward tiny gadget that maintains the larger system’s safe and efficient operation.
